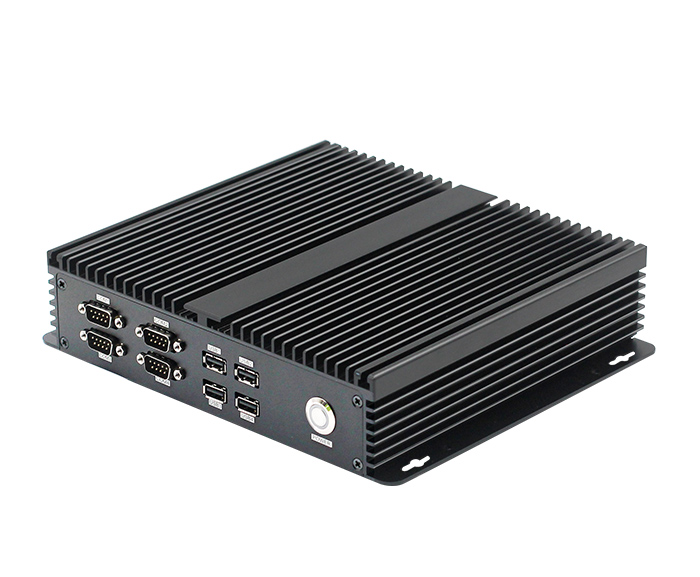

Q-BOX-M(top90c 2*lan)

Model : Q-BOX-M(top90c 2*lan)

Description :
◆ Integrated Intel 5th Mobile Broadwell-U single CPU；
◆ onboard 2GB/4GB DDR3L Ram；
◆ Providing 1*VGA,1*HDMI 1.4（support 4k display out put ）；
◆ 4*RS-232, 2*RS422/485（6*RS232 for optional）；
◆Support power-on automatic power-on function, jumper selection;
◆ Single input DC power supply, DC12V (optional widened voltage module, can support 9-36V input)；
◆ size:235*200*56.5mm ；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Integrated Intel 5^th Mobile Broadwell-U single CPU；

◆ onboard 2GB/4GB DDR3L Ram；

◆ Providing 1*VGA,1*HDMI 1.4（support 4k display out put ）；

◆ 4*RS-232, 2*RS422/485（6*RS232 for optional）；

◆Support power-on automatic power-on function, jumper selection;

◆ Single input DC power supply, DC12V (optional widened voltage module, can support 9-36V input)；

◆ size:235*200*56.5mm ；

Specifications

Model	Q-BOX-M
size	23520056.5mm
Processor	Onboard Intel 5^th?Mobile Intel Broadwell-U?single chipset CPU(i3-5010/i5-5200u/i7-5500u)
Chipset	Broadwell-U?single chipset CPU
Memory	Onboard 2GB/4GB DDR3L?Ram,?max to be 12GB Ram
Expansion socket	1 DDR3 SODIMM 204 Socket
Lan	Onboard 2 Gigabit LAN
Audio	Onboard ?HDA ALC662
Storage equipment	1MINISATA support SSD; 2SATA?1*SATA_HDD
Black	Black

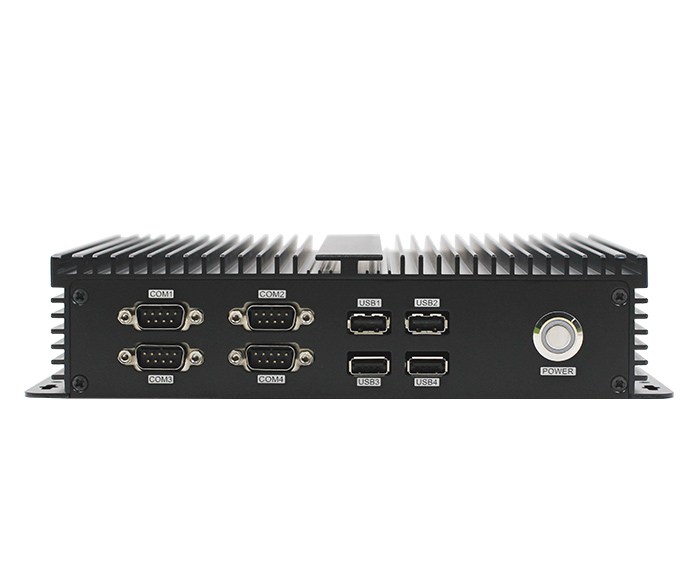

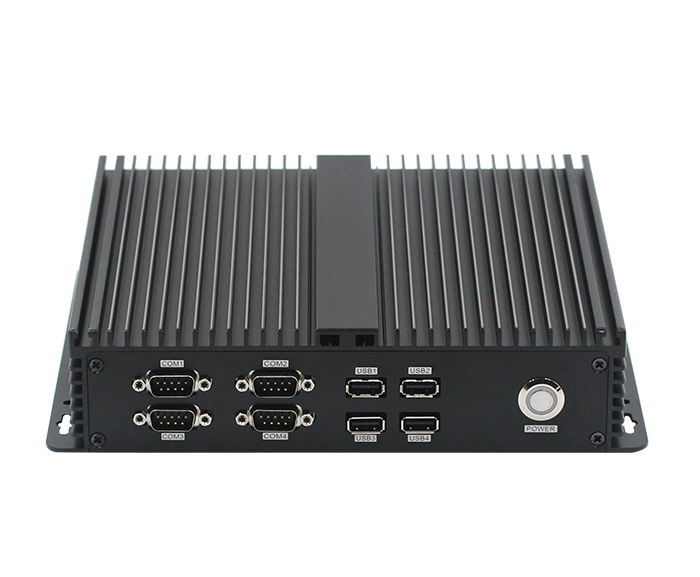

Front panel interface	4COM（COM1 and COM2 RS422/RS485 and RS232 for optional） 4USB 1*Switch button with indicator light

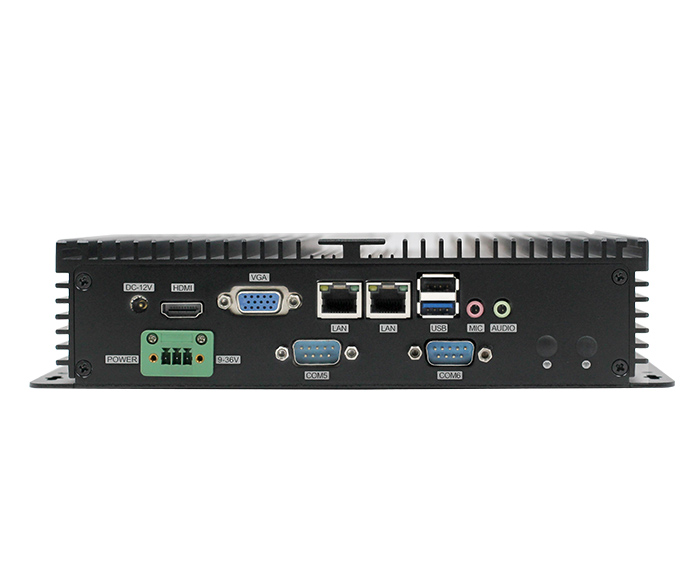

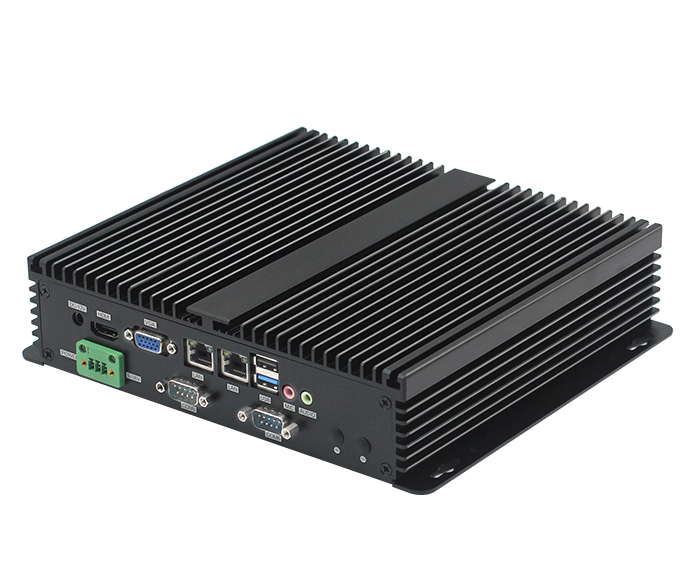

? ? ? ? Backplane interface	1VGA 1HDMI 2USB3.0 2LAN 1line out 1mic in 2COM(RS232) 1DC 1* Phoenix terminal 3PIN power connector
accessories	112V 5APower supply 1WIFI?Antenna?（optional accessories）
Package

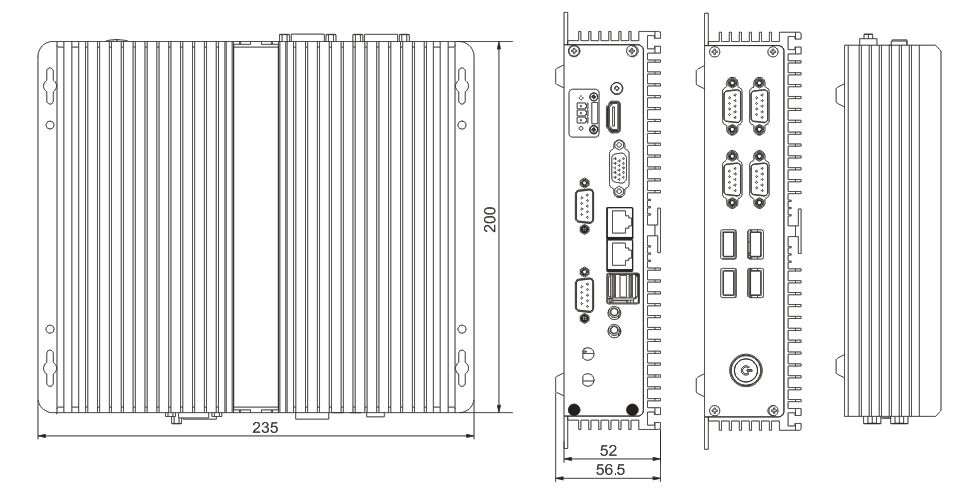

?Size

Order information

Model

description

CPU optional

TOP90C-I3

Integrated Intel 5^th??generation mobile Haswell-u

Integrated 2G/4GDDR3 memory (expandable to 12G)

Optional integrated SSD chip (16-512G optional)

Support 5th?Intel? Core? i3

Such as：I3-5005U，I3-5010U

TOP90C-I5

Integrated Intel 5^th??generation mobile Haswell-u

Integrated 2G/4GDDR3 memory (expandable to 12G)

Optional integrated SSD chip (16-512G optional)

Support :5th?Intel? Core? i5

Such as ：I5-5200U,I5-5300U

TOP90C-I7

Integrated Intel 5^th??generation mobile Haswell-u

Integrated 2G/4GDDR3 memory (expandable to 12G)

Optional integrated SSD chip (16-512G optional)

Support 5th?Intel? Core? i7

Such as：I7-5500U,I7-5600U
